ราคา 2,500 บาท / เครื่อง (งานมาตรฐาน)

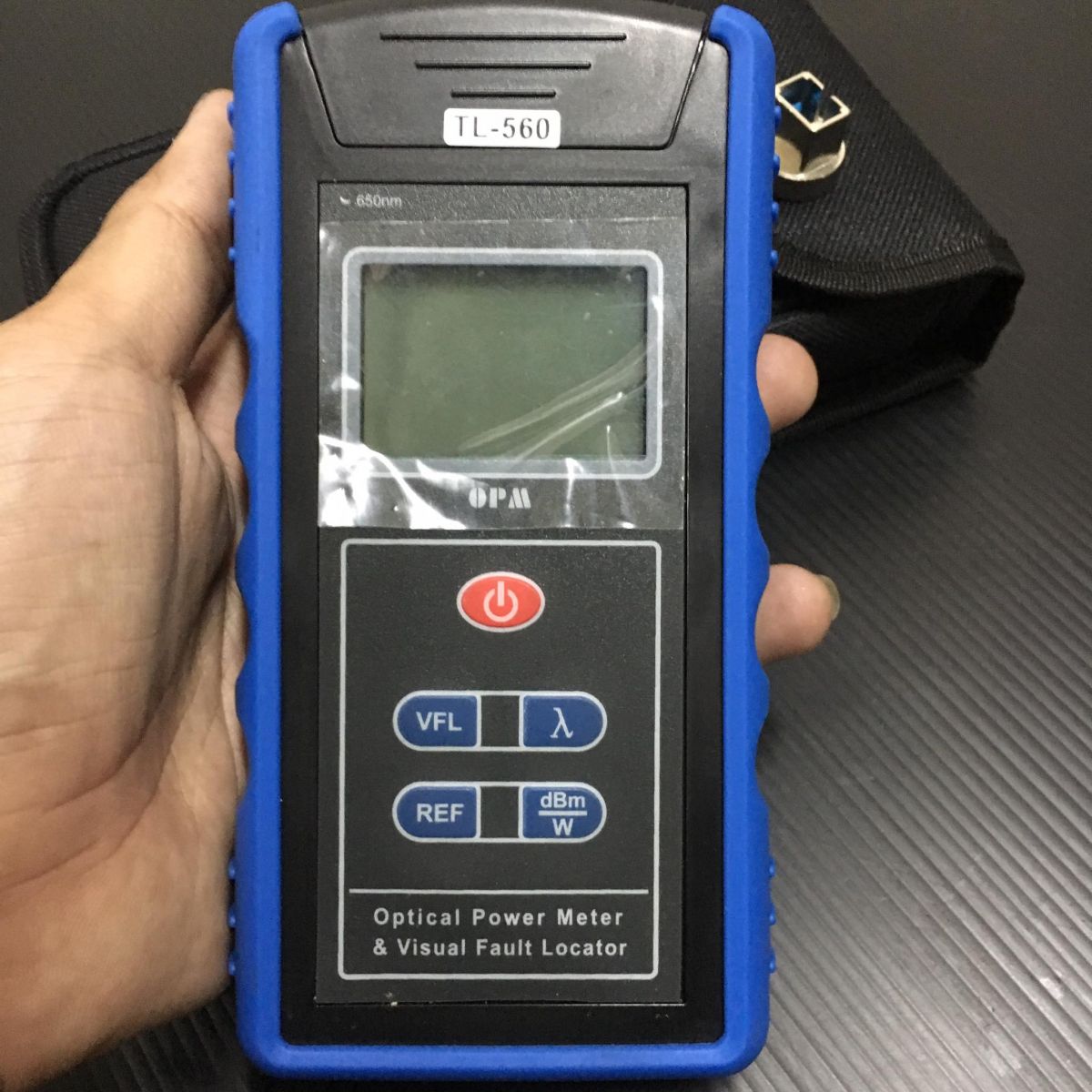

รุ่น : TL-560 (รหัสสินค้า : P01016)​

ทดสอบเคลือข่ายคลื่นความถี่ 850nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm
ในถ่าน AA เปิดสแตนบาย 120ชม. (ใช้งานไม่หนักมาก) มีระบบปิดไฟอัตโนมัติใน10วินาที
อุปกรณ์มีซิลิโคนหุ้นกันกระแทก เหมาะสำหรับพกพา หน้าจอLCDขนาดใหญ่
กรัมน้ำหนัก180 ขนาด158 × 82 × 29mm

Features
High sensitivity, large dynamic range
Common interface design: FC/SC/ST interface, the standard FC, SC, adapter interface
Miniature casing protection design, compact and easy, falling to prevent accidental damage to the instrument detector.
Fast response without preheating
Low voltage display function
Optional automatic shutdown function
Optional automatic shutdown backlight function
New users since the calibration function Logarithmic power (dBm) and linear power (xW) measurement
Big screen and LED backlit display

Specifications
Standard configuration list:
1, a power meter red light machine Taiwan

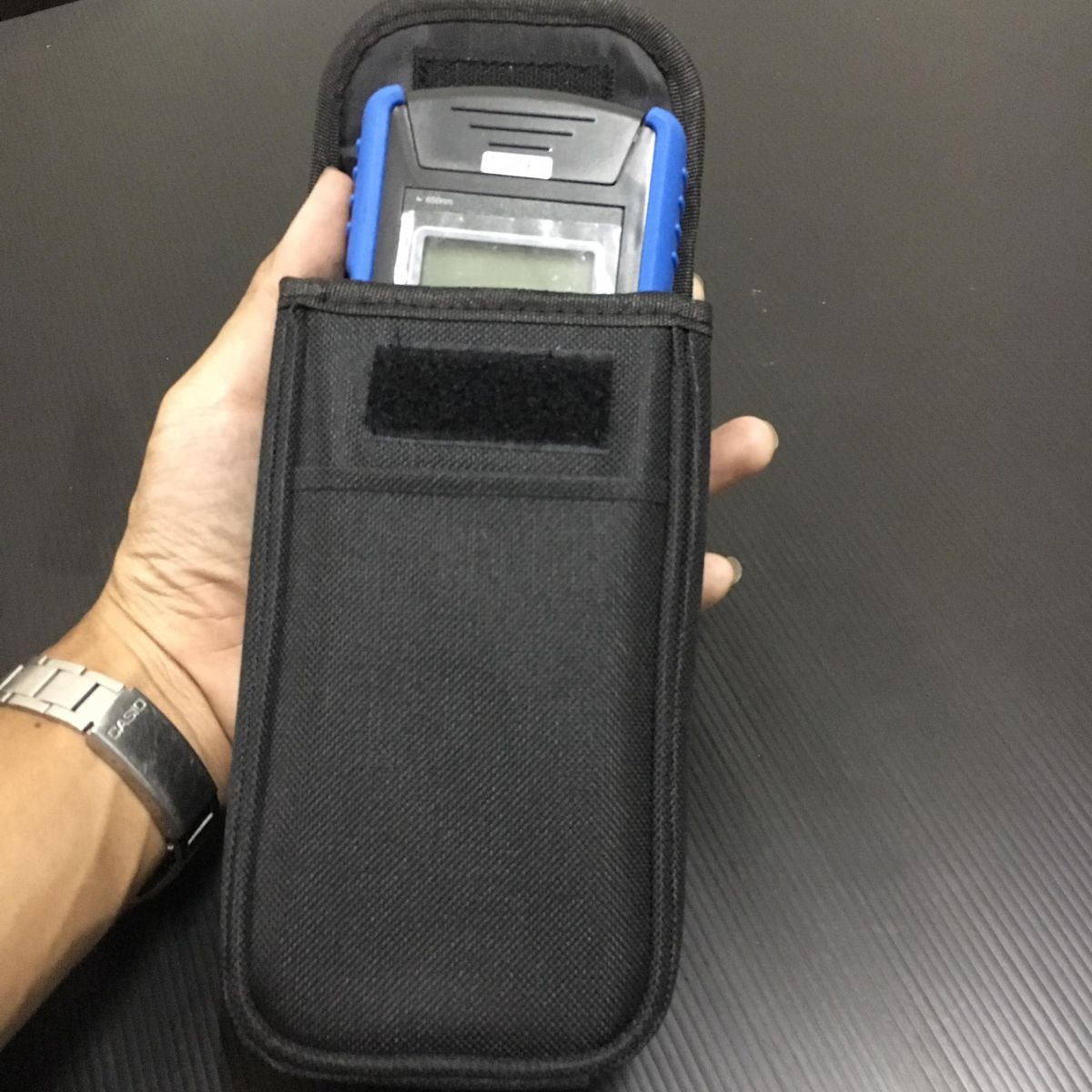

2, a package of Oxford
3, AA two AA alkaline batteries
4, FC interface to a power meter
5, SC interface to a power meter
6, a red light in adapter FC
7, a description
8, a box
PM plus red light machine (using a circular laser spot), red multimeter, Combo Fiber Tester
A type (-70 to + 8 for telecommunications users), C-type (-50 to + 26 for radio and television users)

Product Features
- Users can self-calibration (without PC), but also to restore factory calibration values;
- Automatic shutdown function can be set;
- You can set the reference value, REF relative measurement;
- Real-time display battery charge;
- Steady red light output (constant power control circuit)

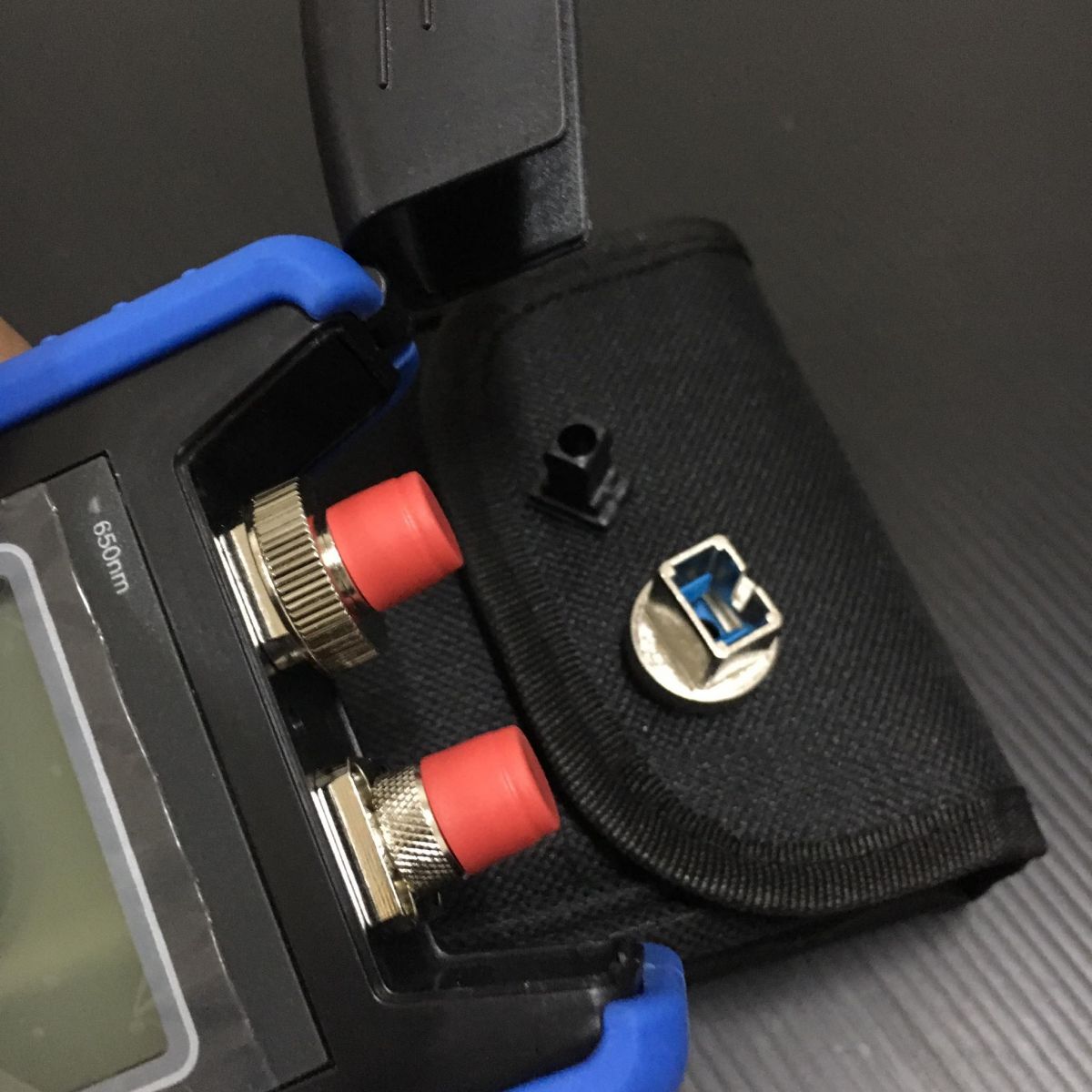

- The use of interchangeable optical port interfaces with FC, SC chief, more accurate measurement;

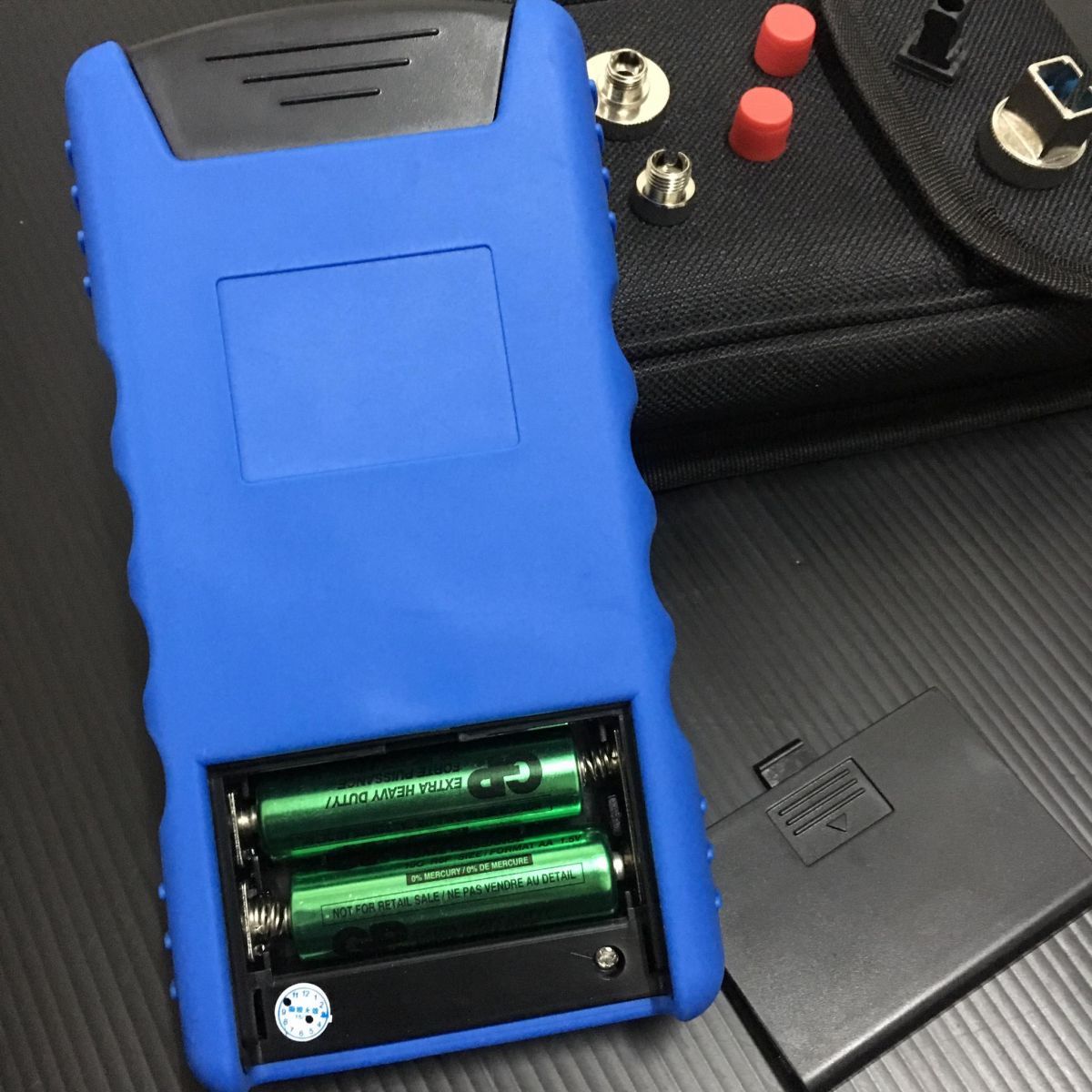

- Two AA batteries, low power design, long time;
- Rubber shell, increase protection performance, suitable for field work

Detail
Power measurement range dBm Type A: -70 ~ + 10 Type C: -50 ~ + 26
Wavelength measurement range nm: 800 ~ 1700
Calibration Wavelength nm: 850,1300,1310,1490,1550,1625
Probe type: InGaAs
Accuracy: <± 3% (-10dBm, 22)
Display Resolution dB
Linear Display: 0.1%, and the number of display: 0.01dBm
Working temperature: -10 ~ + 50
Storage temperature: -20 ~ + 70
Relative Humidity: 90% (+ 30), non-condensing
Optical interface: FC, SC (ST LC optional)
Power supply: two AA batteries on the 5th
Battery continuous operation time h: 120 hours (power light work only)
Auto power off time min: 10
Weight g: 480
Dimensions mm: 158 × 82 × 29
Red light (optional feature)
Wavelength 650nm, power 1-5MW / 10/20/30 / 50mw optional output 0HZ, 2HZ
